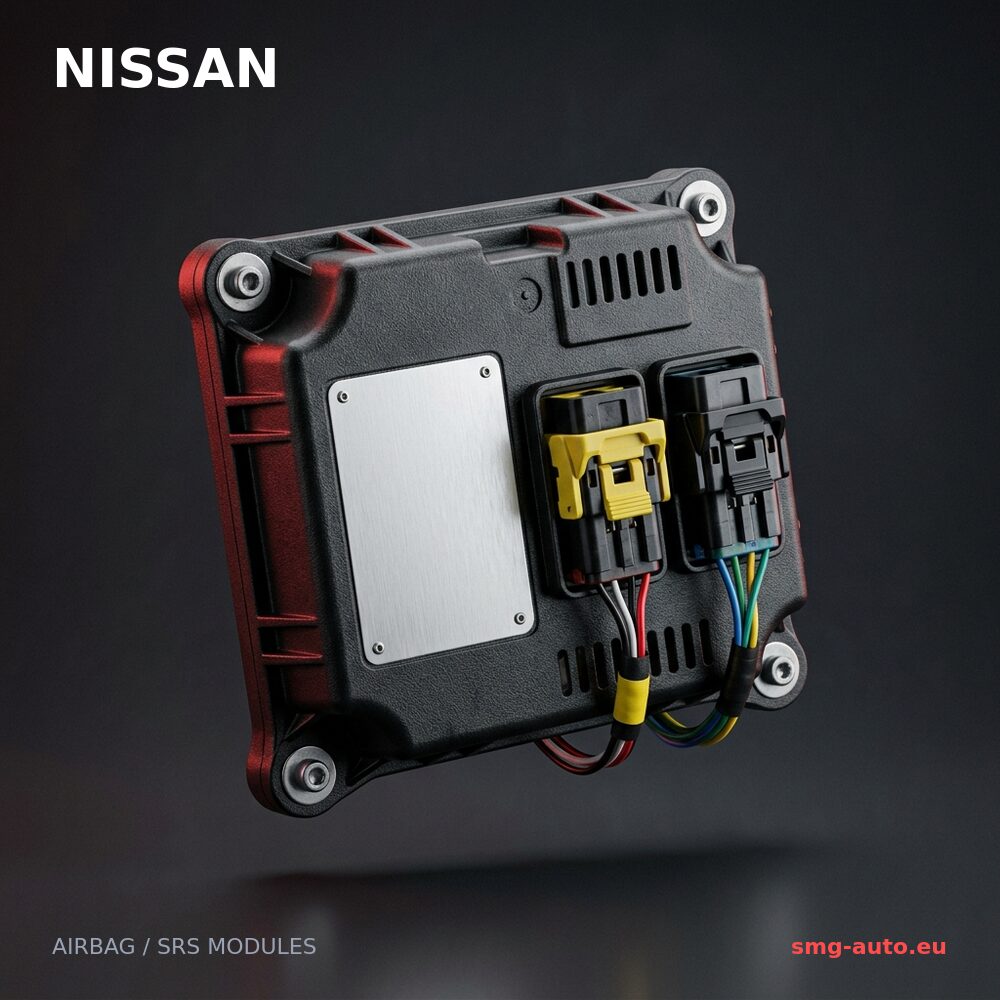

Nissan airbag module 98820-7FL1C – crash data reset
We clear crash data and fault codes from the Nissan SRS module 98820-7FL1C – OBD (no removal) or on the bench. No prepayment; the price is confirmed before any work.
Order for module 98820-7FL1C
No prepayment. We confirm the price and turnaround by phone, and the address and courier instructions arrive by e-mail right away.
- 30–150 € depending on the module
- Back with you in 24–48 h
- No charge if the module cannot be recovered
Module 98820-7FL1C details
| Hardware part number | 98820-7FL1C |
|---|---|
| Vehicle | Nissan (SRS / airbag module) |
| Module manufacturer | AUTOLIV |
| Where the crash record is stored | Infineon XC2000 XC2336B microcontroller (internal flash) |
| How it is reset | OBD (no removal) or on the bench |
| Price | from 30 to 150 € depending on the module, confirmed before any work |
| Turnaround | Within 1 hour on site, same day |
| Support | Full |
What we do with module 98820-7FL1C
Crash data reset
We erase the crash record so the module works again after the deployed airbags and pretensioners have been replaced.
Reading and clearing fault codes
We read the SRS module codes (B-codes), check which are active and clear them after the repair.
EEPROM / data flash read and write
We keep a full backup of the memory before any work and restore it if needed.
FLASH read and write
Work with the module firmware – for recovery or transfer to another module with the same part number.
Module identification
We read the part number, software version and VIN so we are sure we work with the right record.
How it works for Nissan with this module
- You order through the form or by phone. We confirm that 98820-7FL1C is reset over OBD, and the price.
- You bring the car to our workshop in Yambol, Bulgaria, or send the removed module by courier. Over OBD nothing is removed – we read the module through the diagnostic port.
- We check the replaced components. If there is a fault for an airbag, pretensioner or sensor, it is sorted first.
- We clear the crash data and the fault codes. Usually within an hour on site.
- Test – the airbag light goes out after the self-check; we also check the other control units for a stored crash.
If the module is already removed, we also do it on the bench – send it by courier from anywhere in the EU.
When it is needed
- After a crash with deployed airbags or pretensioners – the module keeps the record and will not re-arm the system.
- After a lighter impact where only the belt pretensioners fired – the light stays on although the airbags are intact.
- With a used module from another vehicle that has a stored crash.
- With an imported car that arrives with an airbag light and a crash record in its history.
What a reset does NOT fix
- A damaged airbag, pretensioner or crash sensor – they set a new fault immediately.
- A broken wire or corroded connector under the seat – the most common reason for the light without a crash.
- A module with a burnt board after a short circuit – for Nissan we then source a module with the same part number and clone it.
Other Nissan airbag modules by AUTOLIV with XC2336B memory
Same module family – handled the same way as 98820-7FL1C.
- 28556-2FK0AOBD / bench
- 28556-2FL0AOBD / bench
- 28556-2FL1AOBD / bench
- 28556-2GD0AOBD / bench
- 28556-2GG0AOBD / bench
- 28556-2GG1AOBD / bench
- 28556-2GR0AOBD / bench
- 28556-2GR0BOBD / bench
- 28556-3FK0AOBD / bench
- 28556-3HW0AOBD / bench
- 28556-3RA0AOBD / bench
- 28556-3RB0AOBD / bench
- 28556-3RC0AOBD / bench
- 28556-3RD0AOBD / bench
- 28556-3RD0BOBD / bench
- 28556-3RF0AOBD / bench
Frequently asked questions
Do I have to remove module 98820-7FL1C?
Not necessarily. On Nissan with this module the crash data is cleared through the diagnostic port. If you are near Yambol, Bulgaria, the job takes about an hour on site. From the rest of the EU you remove the module and send it by courier – we handle it on the bench.
Why is the airbag light still on after the reset?
Because crash data is not the only cause. If an airbag, pretensioner, crash sensor or connector is damaged or has not been replaced, the module logs a new fault. That is why we read all fault codes before the reset and tell you what still needs replacing.
Can you clear the crash data without replacing the airbags?
We do not. The module stores the record because the components have fired. We reset it only once the airbags and pretensioners have been replaced; otherwise the system will not protect the occupants in the next crash.
How much does the reset of module 98820-7FL1C cost?
The price depends on the method (OBD or bench) and whether there are other faults. We confirm it by phone from the part number before we start. No hidden costs – if the module is faulty and cannot be recovered, you do not pay for the attempt.
